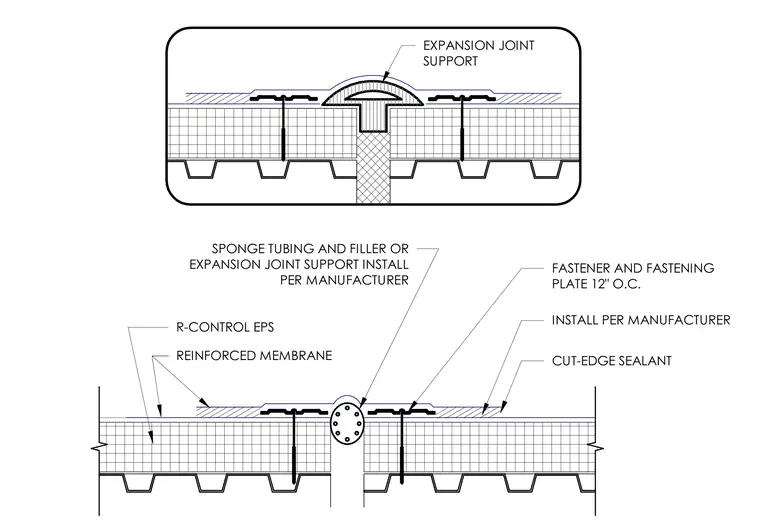

An expansion joint membrane assembly bridges a structural gap over metal decking and R-Control EPS insulation. An expansion joint support, or alternative sponge tubing and filler, is installed at the joint per the manufacturer's specifications. A reinforced membrane covers the assembly, secured by fasteners and fastening plates spaced at twelve inches on center. A cut-edge sealant is applied along the perimeter of the membrane to ensure weather tightness.
EXPANSION JOINT SUPPORT SPONGE TUBING AND FILLER OR EXPANSION JOINT SUPPORT INSTALL PER MANUFACTURER FASTENER AND FASTENING PLATE 12" O.C. INSTALL PER MANUFACTURER CUT-EDGE SEALANT R-CONTROL EPS REINFORCED MEMBRANE 2200002m 20015 ‘o o o o _ 0 o o) O
