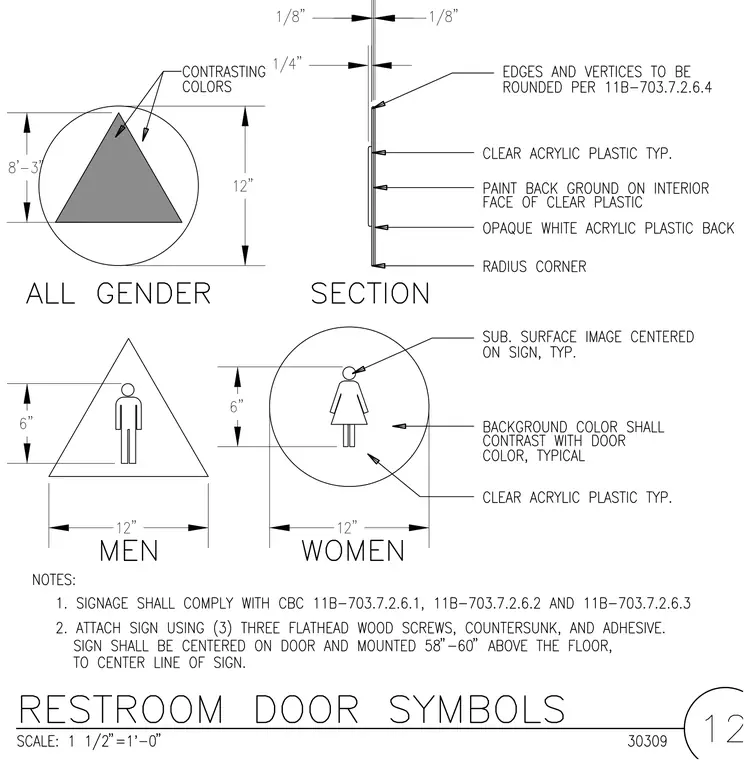

Restroom door identification signs consist of a circular or triangular acrylic plate featuring a subsurface image centered on the sign with contrasting background colors. The assembly utilizes a clear acrylic plastic face with paint applied to the interior face, backed by an opaque white acrylic plastic back, with edges and vertices rounded per 11B-703.7.2.6.4. The total thickness is one-quarter inch, with one-eighth inch spacing from the door surface. Signs are attached using three countersunk flathead wood screws and adhesive, centered on the door and mounted fifty-eight to sixty inches above the floor to the center line of the sign.
