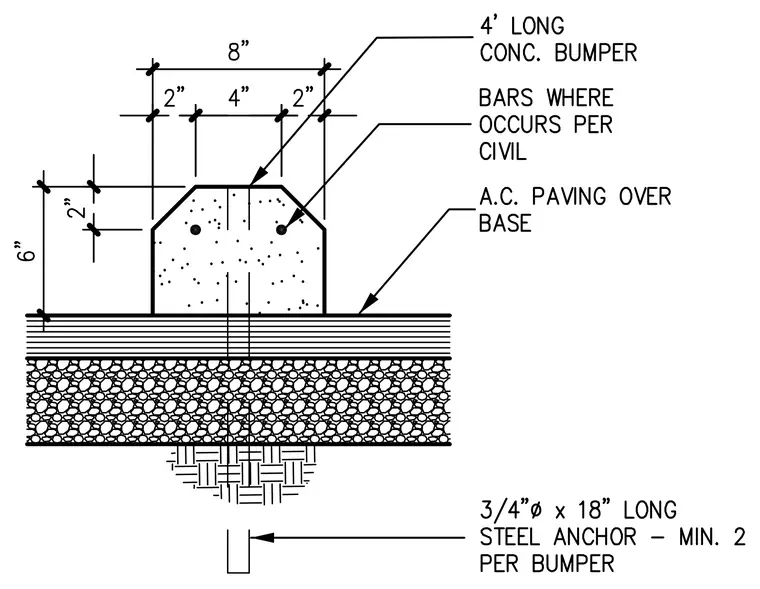

A four-foot-long concrete bumper rests on asphalt concrete paving over a prepared base course. The bumper measures eight inches wide at the base with a six-inch height, featuring two-inch chamfered top corners and horizontal reinforcing bars placed as required by civil engineering. Two-part steel anchors measuring three-quarters of an inch in diameter by eighteen inches long secure the bumper, with a minimum of two anchors provided per bumper.
