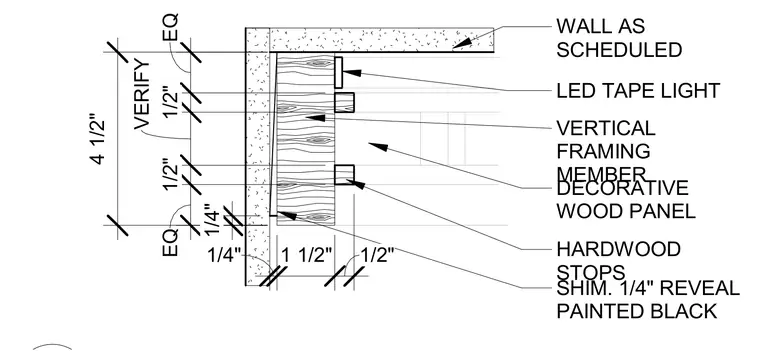

Decorative wood panels attach to vertical framing members positioned against a scheduled wall assembly. Hardwood stops and shims secure the panels while creating a quarter-inch black-painted reveal. An integrated LED tape lighting strip provides concealed illumination within the assembly profile, spaced per the detailed dimensions.
VERTICAL FRAMING MEMBER DECORATIVE WOOD PANEL WALL AS SCHEDULED HARDWOOD STOPS SHIM. 1/4" REVEAL PAINTED BLACK LED TAPE LIGHT EQ 1/2" VERIFY 1/2" EQ 4 1/2" 1/4" 1/4" 1 1/2" 1/2"
