A continuous six-inch by fourteen-gauge track is secured with number twelve screws on each side at each stud. This track mates with a continuous six-inch by fourteen-gauge by three-and-one-quarter-inch deep leg seismic drift track featuring a four-inch web slot. Number twelve sheet metal screws are installed at twelve inches on center and at each stud typically. A drift insert is positioned alongside six-inch by sixteen-gauge steel studs spaced at sixteen inches on center.

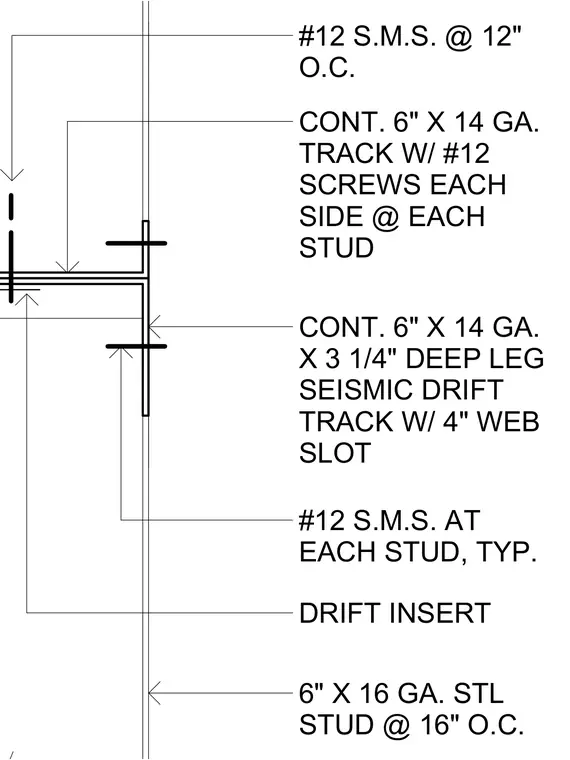

CONT. 6" X 14 GA. TRACK W/ #12 SCREWS EACH SIDE @ EACH STUD CONT. 6" X 14 GA. X 3 1/4" DEEP LEG SEISMIC DRIFT TRACK W/ 4" WEB SLOT #12 S.M.S. @ 12" O.C. #12 S.M.S. AT EACH STUD, TYP. DRIFT INSERT 6" X 16 GA. STL STUD @ 16" O.C.
