Parapet with Gutter at Aggregate Ballast

Materials

Steel Stainless Steel Timber / Wood Metal (misc.)

Elements

Roofs Parapets Waterproofing / Flashing Insulation Drainage Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

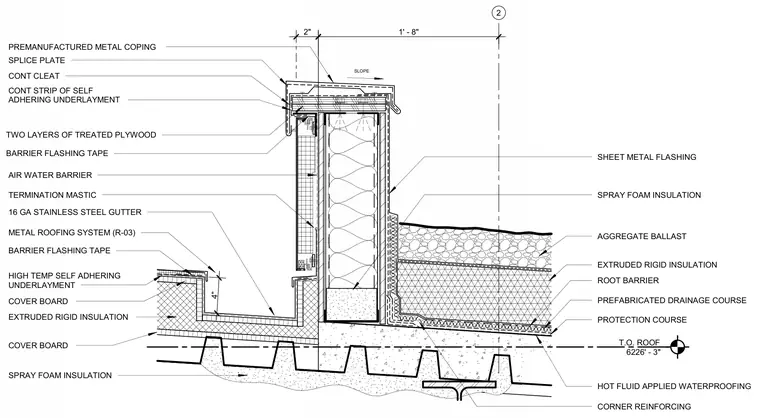

This parapet detail shows a premanufactured metal coping set over two layers of treated plywood with a continuous cleat and splice plate. A continuous strip of self-adhering underlayment and barrier flashing tape provide weather protection at the parapet top and wall transition. The exterior wall incorporates an air water barrier, spray foam insulation, and a 16-gauge stainless steel gutter at the roof edge. The roof assembly consists of aggregate ballast, extruded rigid insulation, a root barrier, a prefabricated drainage course, a protection course, and hot fluid applied waterproofing over a metal deck. High temperature self-adhering underlayment, cover board, and additional extruded rigid insulation line the gutter recess.
