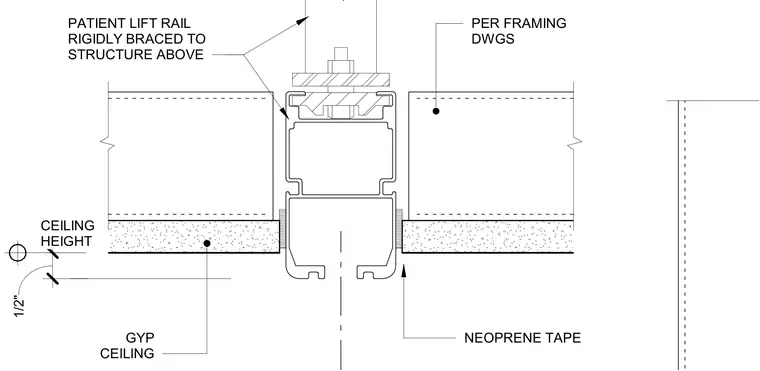

A patient lift rail is suspended and rigidly braced to the structural framing above per framing drawings. The gypsum ceiling board terminates at the rail with a neoprene tape interface along the vertical joint. A half-inch dimension establishes the vertical ceiling height clearance.
GYP CEILING PER FRAMING DWGS NEOPRENE TAPE 1/2" CEILING HEIGHT PATIENT LIFT RAIL RIGIDLY BRACED TO STRUCTURE ABOVE
