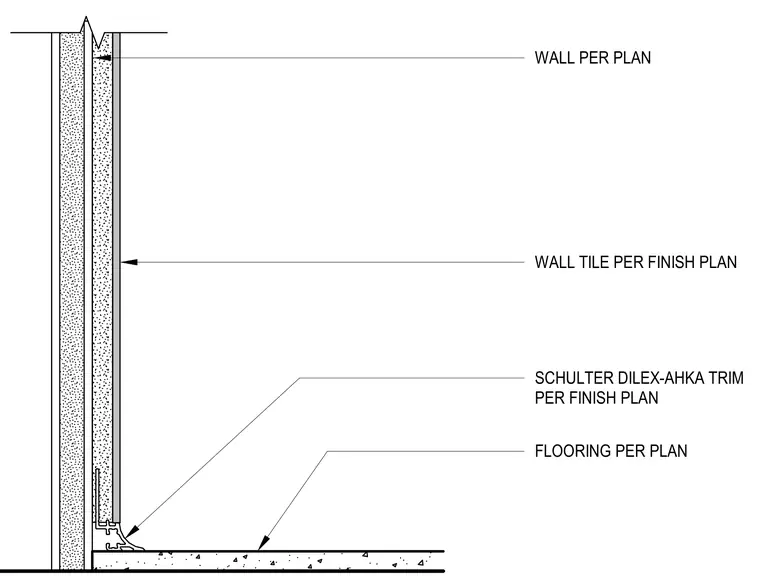

This detail establishes the wall base transition where tiled partitions meet the finished floor assembly. A Schluter Dilex-AHKA trim profile anchors at the base of the wall to receive the resilient flooring and wall tile per finish plans. Wall assemblies and flooring materials transition cleanly against the metal profile.
WALL PER PLAN WALL TILE PER FINISH PLAN FLOORING PER PLAN SCHULTER DILEX-AHKA TRIM PER FINISH PLAN
