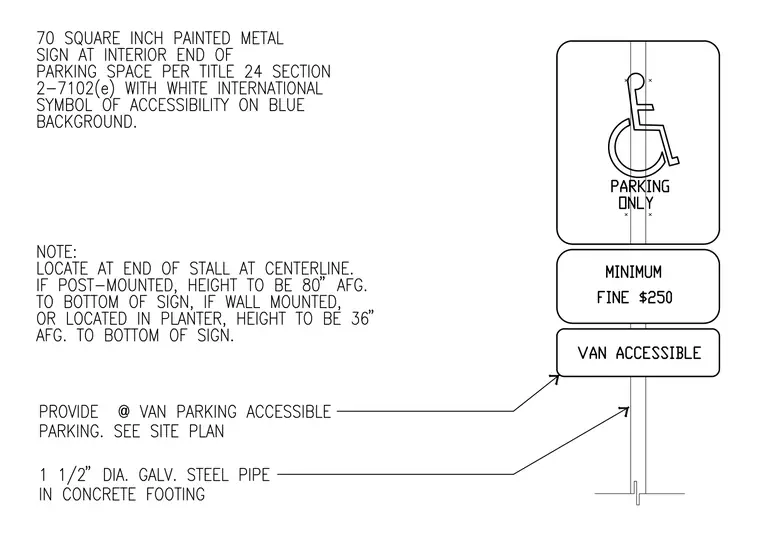

A 70 square inch painted metal sign featuring the white international symbol of accessibility on a blue background is mounted at the interior end of a parking space per Title 24 Section 2-7102(e). Supplementary panels indicate minimum fine amounts and van accessibility designation. The sign is supported by a 1 1/2 inch diameter galvanized steel pipe set in a concrete footing. When post-mounted, the bottom of the sign is located at 80 inches above finished grade, and when wall-mounted or located in a planter, the bottom is at 36 inches above finished grade. The assembly is positioned at the centerline of the end of the stall.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
