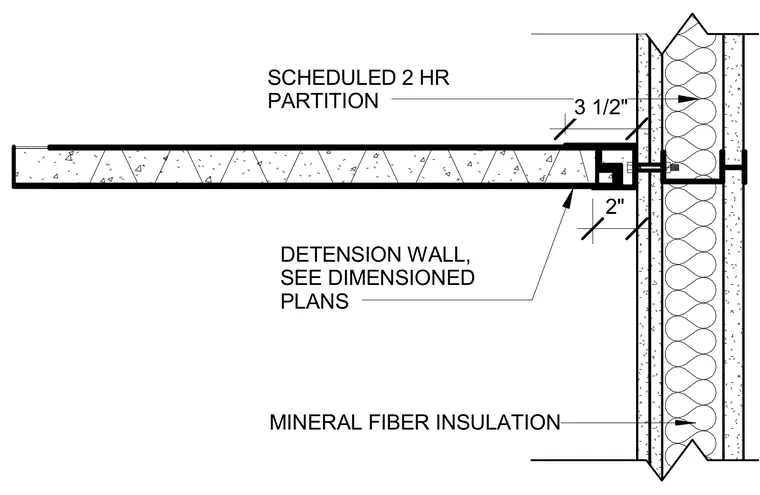

This plan detail shows the connection of a scheduled two-hour rated partition intersecting a detention wall. The assembly includes mineral fiber insulation within the wall cavity and features specific dimensional clearances of three and one-half inches and two inches at the partition junction.
MINERAL FIBER INSULATION SCHEDULED 2 HR PARTITION DETENSION WALL, SEE DIMENSIONED PLANS 3 1/2" 2"
