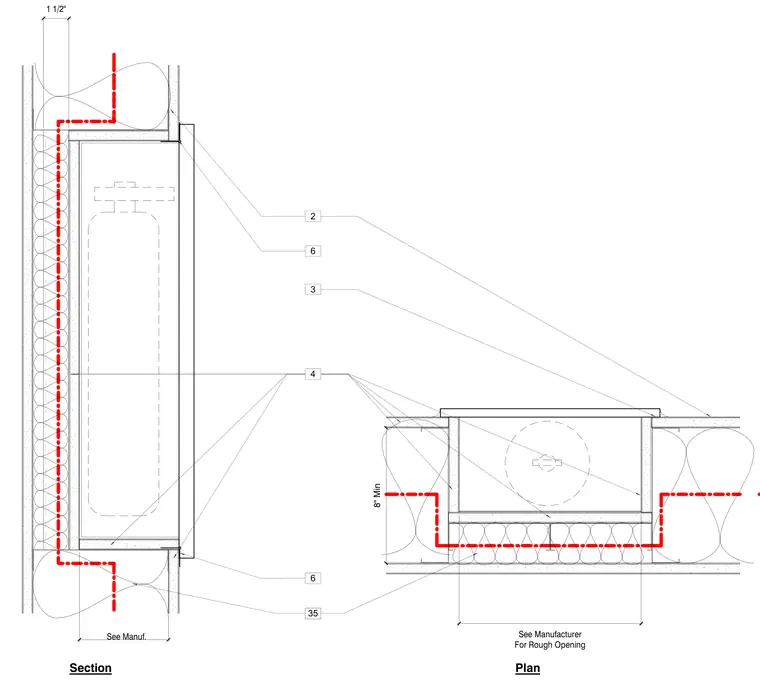

A recessed cabinet is installed within a framed wall cavity with a minimum eight-inch depth requirement. Wall framing and drywall assemblies enclose the unit with specified clearances. The rough opening dimensions are sized according to the manufacturer specifications. Trim flanges finish the perimeter of the recessed enclosure.
4 2 See Manufacturer For Rough Opening See Manuf. 3 6 6 1 1/2" Section Plan 8" Min 35
