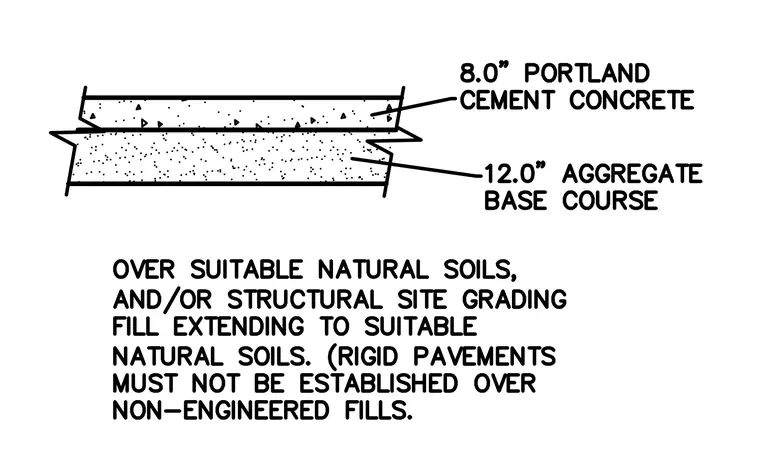

An 8.0-inch Portland cement concrete pavement layer sits atop a 12.0-inch aggregate base course. The subgrade must consist of suitable natural soils or structural site grading fill extending to stable natural soils. Rigid pavements must not be established over non-engineered fills.
