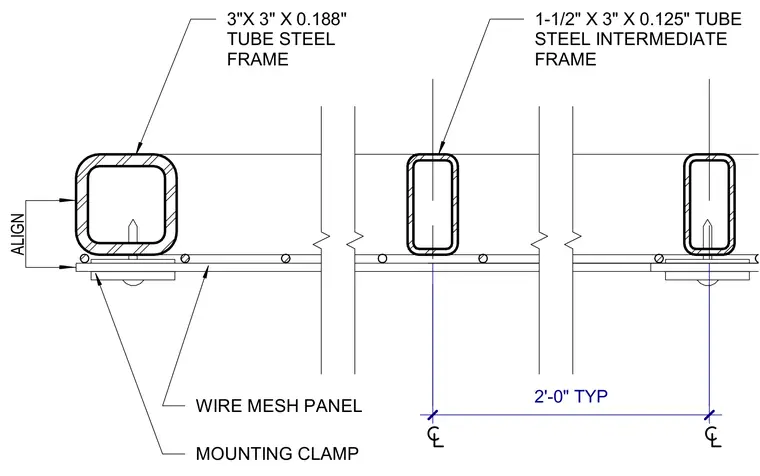

The assembly consists of a main three-inch by three-inch by 0.188-inch hollow structural section tube steel frame supporting a wire mesh panel. Intermediate framing utilizes one-and-one-half-inch by three-inch by 0.125-inch tube steel members spaced at two feet typical on center. Wire mesh panels are secured to the steel tubing using mounting clamps.
2'-0" TYP 3"X 3" X 0.188" TUBE STEEL FRAME 1-1/2" X 3" X 0.125" TUBE STEEL INTERMEDIATE FRAME MOUNTING CLAMP ALIGN WIRE MESH PANEL
