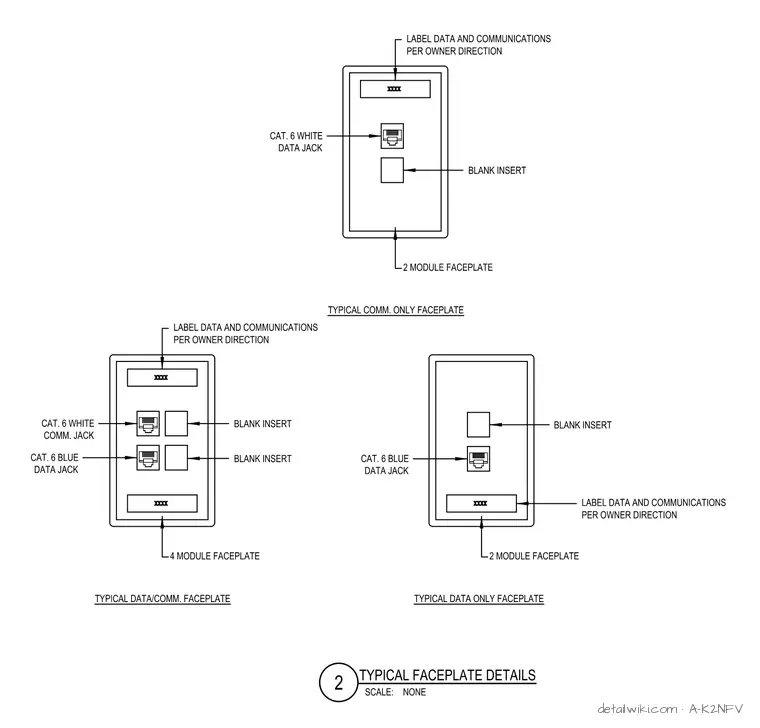

Telecommunication faceplate layouts detail the arrangement of data jacks and blank inserts within two-module and four-module wall plates. A typical communication-only faceplate utilizes a two-module frame containing a category six white data jack, a blank insert, and a designated label area for data and communications per owner direction. A combined data and communication faceplate features a four-module frame equipped with two category six jacks in white and blue, two blank inserts, and top and bottom label zones. A typical data-only faceplate incorporates a two-module frame with a single category six blue data jack, a blank insert, and owner-directed labeling.
