An interior concrete masonry unit infill wall receives an interior finish or coating on both faces according to project specifications. Structural details for the concrete masonry unit wall are coordinated with the structural drawings.

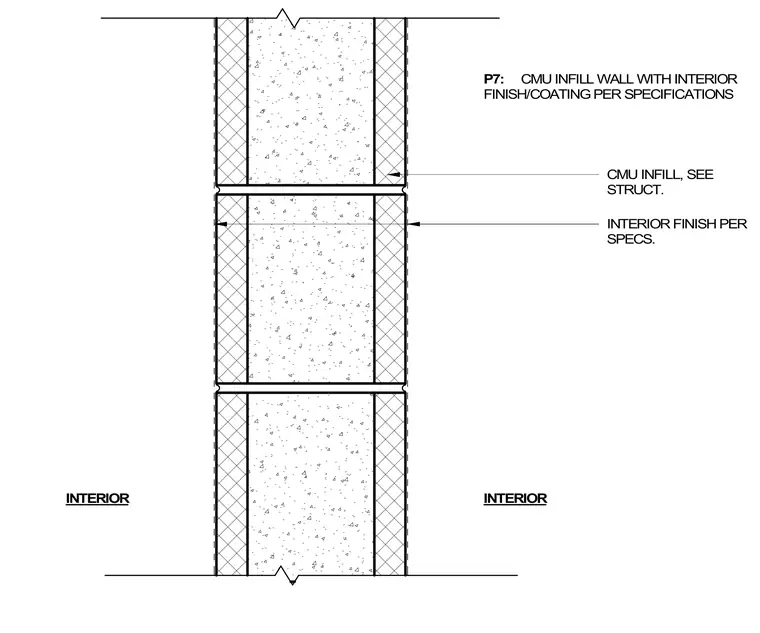

INTERIOR CMU INFILL, SEE STRUCT. INTERIOR INTERIOR FINISH PER SPECS. P7: CMU INFILL WALL WITH INTERIOR FINISH/COATING PER SPECIFICATIONS
