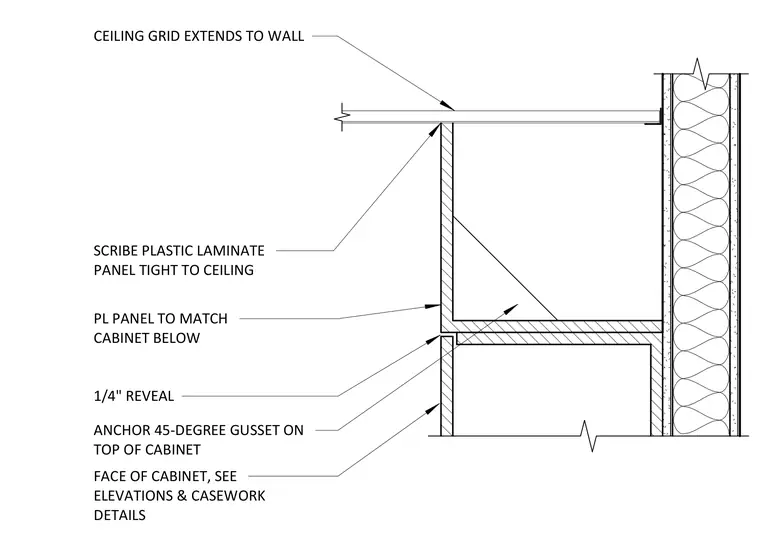

A plastic laminate panel matches the casework below, anchored with a forty-five-degree gusset on top of the cabinet and scribed tight to the ceiling. A one-quarter-inch reveal separates the panel from the face of the cabinet below. The ceiling grid extends to the wall, terminating against the partition framing.
PL PANEL TO MATCH CABINET BELOW ANCHOR 45-DEGREE GUSSET ON TOP OF CABINET 1/4" REVEAL FACE OF CABINET, SEE ELEVATIONS & CASEWORK DETAILS CEILING GRID EXTENDS TO WALL SCRIBE PLASTIC LAMINATE PANEL TIGHT TO CEILING
