Architectural · A-JZSP9

Curtain Wall Stack Joint and Shadow Box Section at Floor Level

Materials

Steel Stainless Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

Connections

Welded Connection Bolted Connection

About this detail

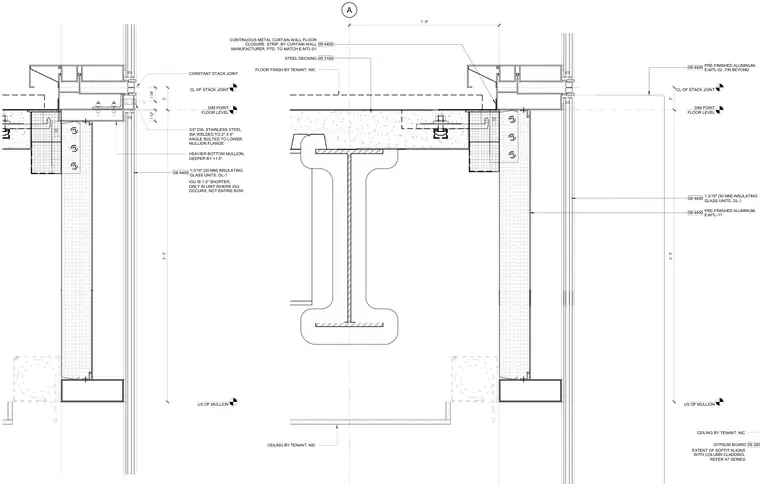

This architectural detail shows a curtain wall stack joint and shadow box assembly at a structural steel floor level. The connection incorporates a three-quarter-inch-diameter stainless steel ISA welded to a two-by-four-inch angle that is bolted to the lower mullion flange. The assembly features a heavier bottom mullion, which is deeper by one and a half inches to accommodate a shortened insulating glass unit. A continuous metal curtain wall floor closure strip, painted to match the pre-finished aluminum finish, spans the slab edge above steel decking. Gypsum board soffit framing and tenant-finished flooring align with the exterior column cladding.
