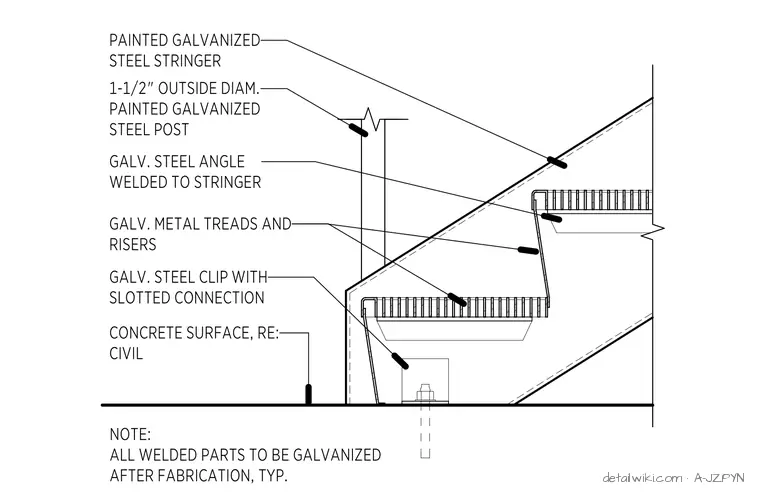

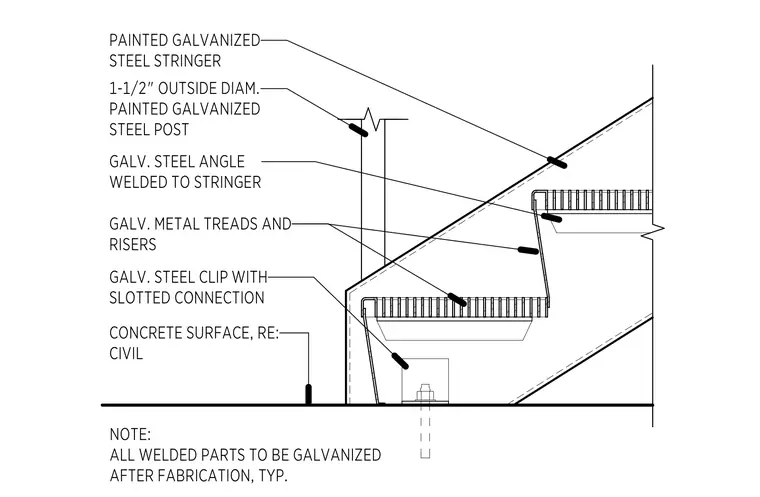

The stair assembly consists of a painted galvanized steel stringer supported at the base by a galvanized steel clip with a slotted connection to allow for movement. This clip is anchored into the concrete surface, which is referenced to civil drawings for specific slab details. Galvanized metal treads and risers are supported by galvanized steel angles welded to the stringer. A 1-1/2 inch outside diameter painted galvanized steel post is integrated into the assembly. All welded components are to be galvanized after fabrication.
