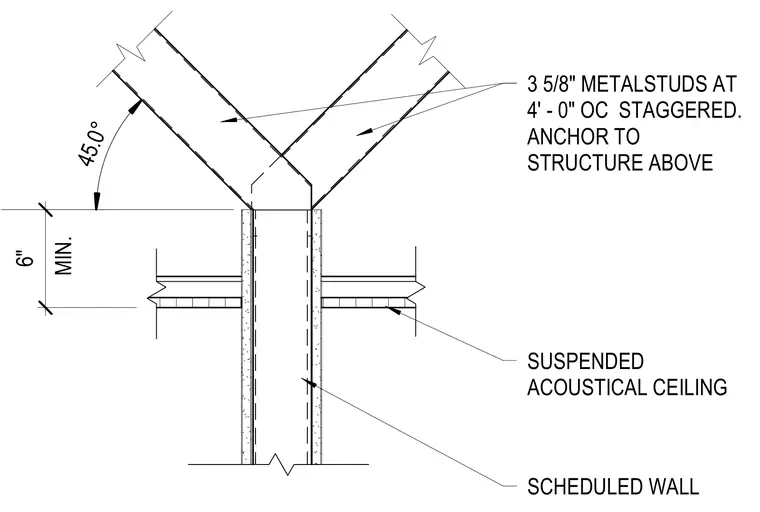

The scheduled wall consists of 3 5/8-inch metal studs spaced at 4 feet on center staggered, anchored to the structure above with diagonal bracing at a 45-degree angle. A suspended acoustical ceiling intersects the wall with a minimum 6-inch vertical clearance dimension shown from the structural anchor point.
SCHEDULED WALL SUSPENDED ACOUSTICAL CEILING 3 5/8" METALSTUDS AT 4' - 0" OC STAGGERED. ANCHOR TO STRUCTURE ABOVE MIN. 6" 45.0°
