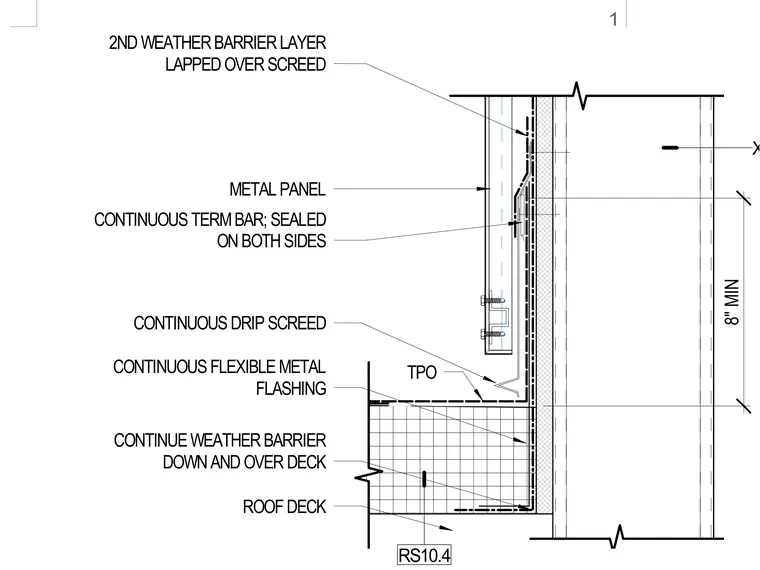

Roof-to-wall transition where a metal panel facade meets a TPO roof deck. A continuous flexible metal flashing and continuous drip screed integrate with the roof waterproofing, maintaining an eight inch minimum clearance. The weather barrier continues down and over the roof deck, with a second weather barrier layer lapped over the screed. A continuous termination bar, sealed on both sides, secures the membrane assembly.
METAL PANEL CONTINUOUS FLEXIBLE METAL FLASHING TPO 8" MIN RS10.4 XS60.21 CONTINUOUS DRIP SCREED CONTINUE WEATHER BARRIER DOWN AND OVER DECK CONTINUOUS TERM BAR; SEALED ON BOTH SIDES 2ND WEATHER BARRIER LAYER LAPPED OVER SCREED ROOF DECK 1
