Bridge Steel Column Base Plate Connection Detail

Materials

Steel

Elements

Connections / Plates

Connections

Base Plate / Anchorage Expansion / Slip Connection

About this detail

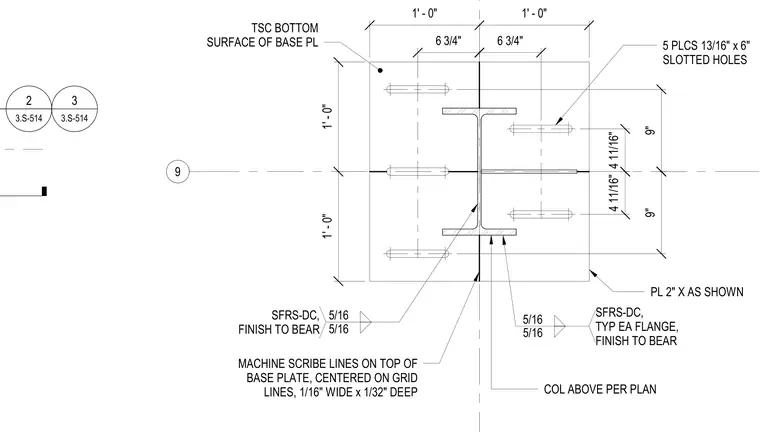

A thick steel base plate supports a structural steel column above, secured with five thirteen-sixteenths by six inch slotted holes. Five-sixteenth inch fillet welds attach the column flanges and web, with surfaces finished to bear. Machine scribe lines one-sixteenth inch wide by one-thirty-second inch deep are marked on top of the base plate, centered on grid lines. The bottom surface of the base plate aligns with the top of the structural concrete.
