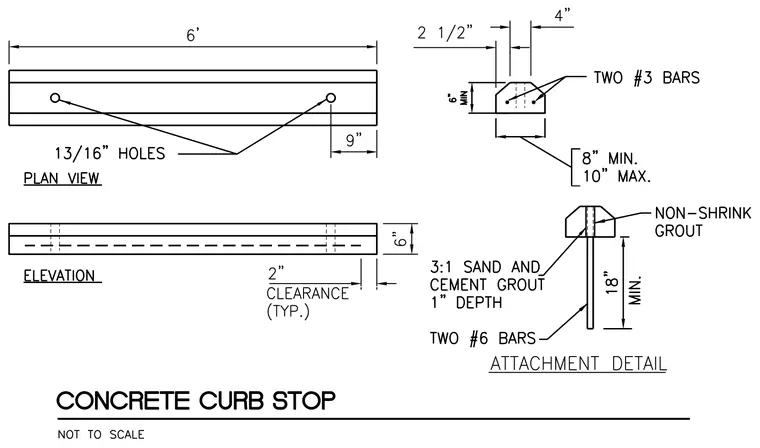

The precast concrete curb stop measures six feet in length with a height of six inches minimum and a base width varying from eight inches minimum to ten inches maximum. Two number 3 reinforcing bars run longitudinally through the concrete profile. Two thirteen-sixteenth-inch diameter holes are located nine inches from each end for anchoring. The attachment detail specifies two number 6 bars extending eighteen inches minimum into the substrate, anchored with a one-inch depth of three-to-one sand and cement grout topped with non-shrink grout.
