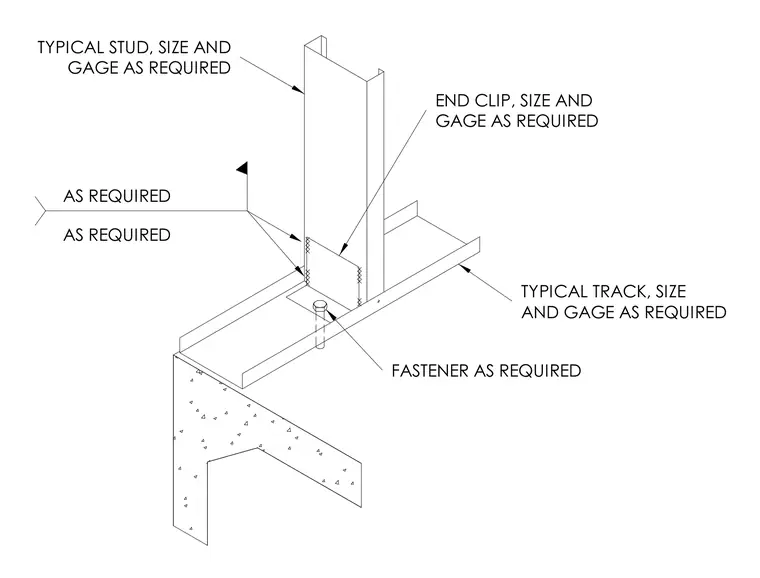

A cold-formed steel stud of size and gauge as required seats into a typical track of size and gauge as required. An end clip of size and gauge as required connects the stud to the track and substrate. Fasteners are installed as required to anchor the assembly.
AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED
