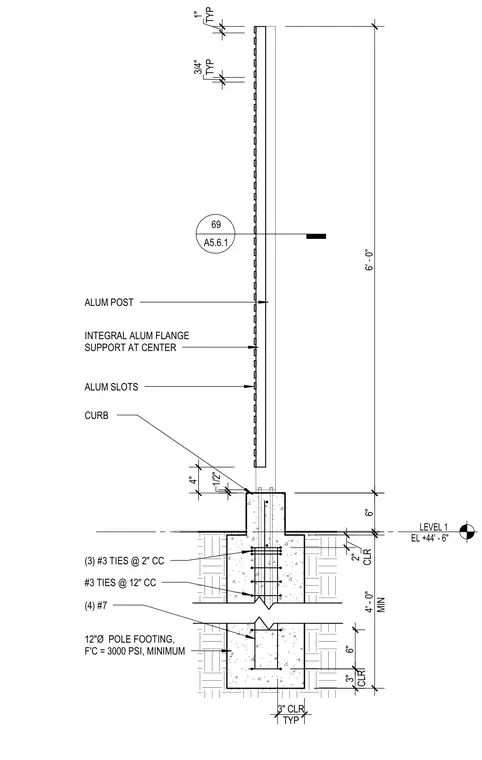

An aluminum post with slotted faces and an integral aluminum flange support at the center anchors into a concrete curb and twelve-inch diameter pole footing. The concrete footing requires a minimum compressive strength of 3000 PSI and is reinforced with four number seven vertical bars. Three number three ties spaced at two inches on center are provided at the top, while number three ties spaced at twelve inches on center are used along the shaft. Clear cover is maintained at two inches and three inches as specified on the drawing.
LEVEL 1 EL +44' - 6" 6" 6' - 0" TYP 1" TYP 3/4" 1/2" 4" 69 A5.6.1 ALUM SLOTS CURB INTEGRAL ALUM FLANGE SUPPORT AT CENTER ALUM POST CLR 3" 6" CLR 2" TYP 3" CLR 12"Ø POLE FOOTING, F'C = 3000 PSI, MINIMUM (4) #7 #3 TIES @ 12" CC (3) #3 TIES @ 2" CC MIN 4' - 0"
