Architectural · A-JY67A

Roof Hatch and Curb Detail at Concrete Deck

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Roofs Decks Foundations / Footings Waterproofing / Flashing Insulation Site / Paving Roof / Floor Openings

About this detail

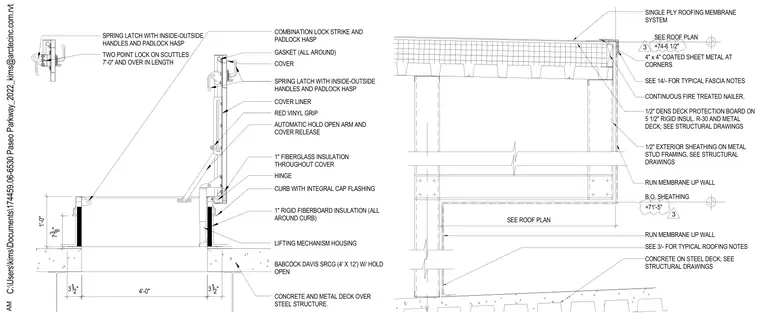

A roof hatch and curb assembly is installed on a concrete on steel deck roof structure. The Babcock Davis SRCG roof hatch features a curb with integral cap flashing, one inch rigid fiberboard insulation around the curb, a lifting mechanism housing, and an automatic hold-open arm with cover release. The cover includes one inch fiberglass insulation throughout, a spring latch with inside-outside handles, a padlock hasp, a two-point lock, and a red vinyl grip. The surrounding roof assembly consists of a single-ply roofing membrane system turned up the wall, a half-inch Dens Deck protection board over five and a half inches of rigid insulation, a continuous fire-treated nailer, and a half-inch exterior sheathing on metal stud framing. Coated sheet metal is provided at the corners, and the assembly interfaces with concrete and metal deck over steel framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
