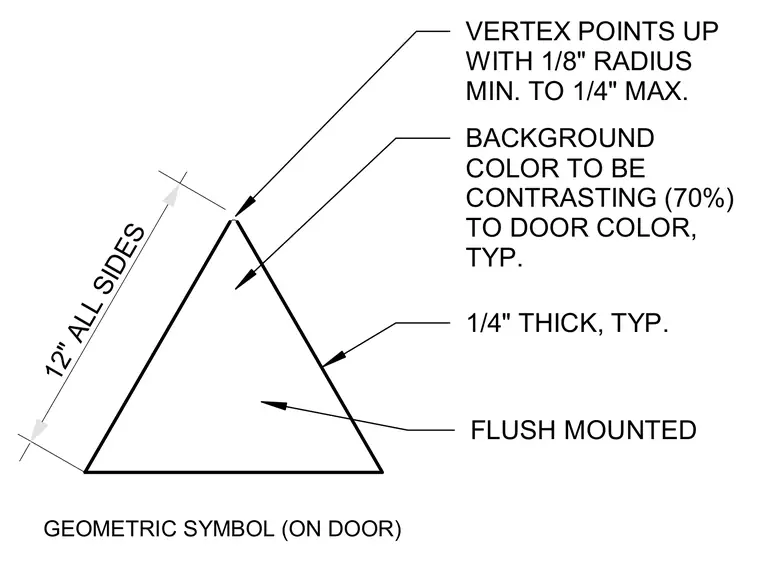

A triangular geometric symbol is flush mounted on the door surface with a thickness of one quarter inch. Each side measures twelve inches in length. The top vertex points upward and features a radius ranging from a one eighth inch minimum to a one quarter inch maximum. The background color requires a seventy percent contrast relative to the door color.
BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. 1/4" THICK, TYP. 12" ALL SIDES GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED VERTEX POINTS UP WITH 1/8" RADIUS MIN. TO 1/4" MAX.
