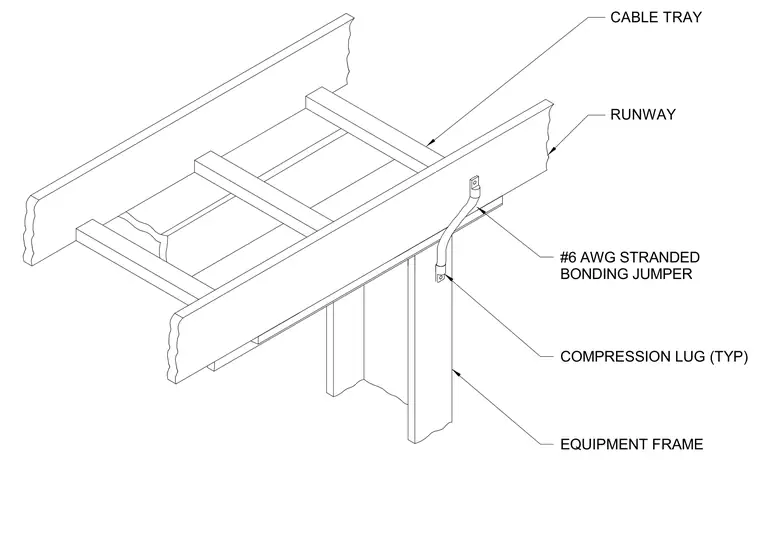

An isometric detail shows the electrical bonding connection between an overhead cable tray runway and an equipment frame. A number 6 American Wire Gauge stranded bonding jumper connects the cable tray runway to the vertical equipment frame. The jumper is secured at both ends with typical compression lugs.
RUNWAY #6 AWG STRANDED BONDING JUMPER COMPRESSION LUG (TYP) EQUIPMENT FRAME CABLE TRAY
