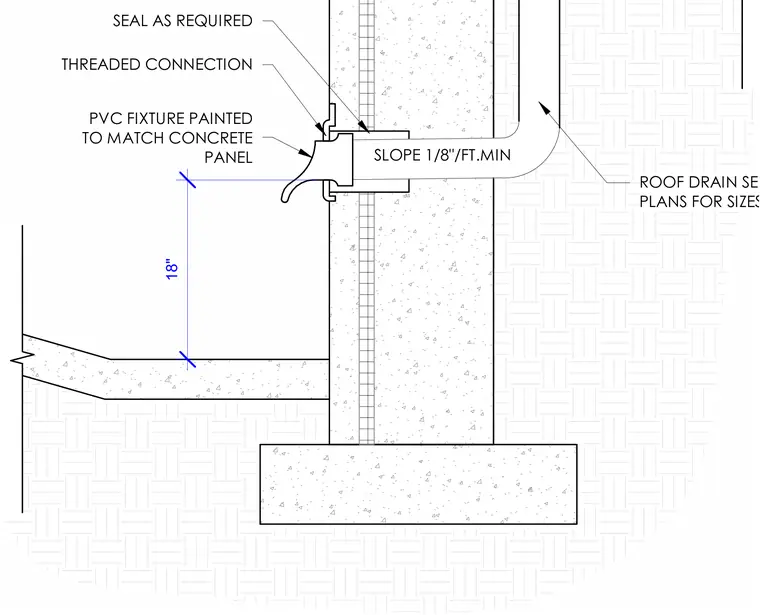

A PVC roof drain fixture connects through a concrete wall panel with a threaded connection and seal as required. The drain line slopes at a minimum of one-eighth inch per foot and matches sizes per the plumbing plans. A PVC fixture painted to match the concrete panel discharges eighteen inches above the sloped concrete slab below.
18" SLOPE 1/8"/FT.MIN SEAL AS REQUIRED THREADED CONNECTION PVC FIXTURE PAINTED TO MATCH CONCRETE PANEL ROOF DRAIN SEE PLUMBING PLANS FOR SIZES
