An acoustical panel ceiling hangs from the structure above using a heavy-duty suspension system supported by 12-gauge vertical ceiling hangers. Four 12-gauge diagonal ceiling splay wires anchor to the structure above at a 45-degree angle to provide seismic bracing. Each wire secures with a connection device rated for a minimum 100-pound capacity. Compression struts coordinate per specific ceiling details.

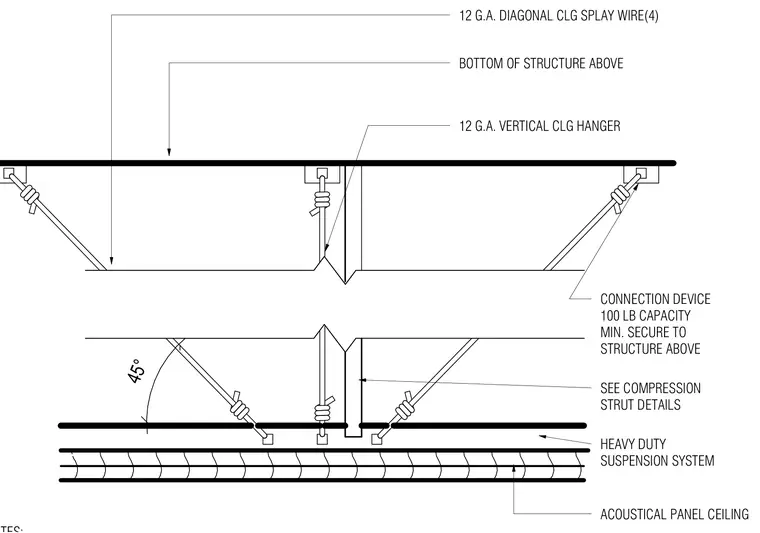

SEE COMPRESSION STRUT DETAILS 12 G.A. VERTICAL CLG HANGER 12 G.A. DIAGONAL CLG SPLAY WIRE(4) BOTTOM OF STRUCTURE ABOVE ACOUSTICAL PANEL CEILING HEAVY DUTY SUSPENSION SYSTEM CONNECTION DEVICE 100 LB CAPACITY MIN. SECURE TO STRUCTURE ABOVE 45°
