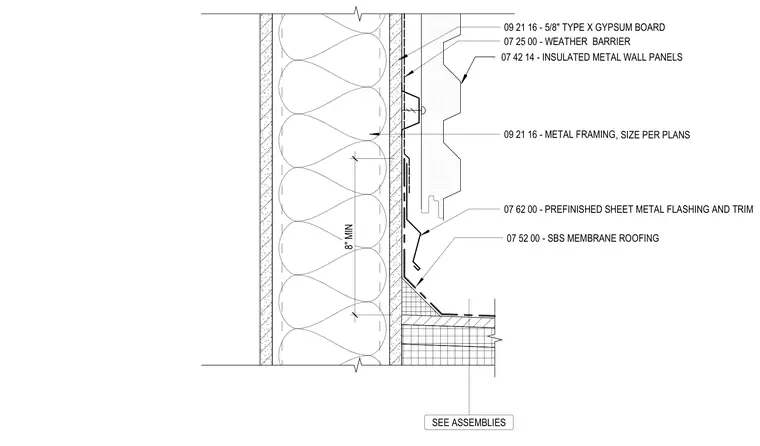

An exterior wall assembly terminates at a roof or base junction with insulated metal wall panels mounted over a weather barrier and metal framing sized per plans. Five-eighths-inch Type X gypsum board lines the interior side of the metal stud framing. Prefinished sheet metal flashing and trim transitions the exterior wall to an SBS membrane roofing assembly at the base.
07 25 00 - WEATHER BARRIER 07 42 14 - INSULATED METAL WALL PANELS 09 21 16 - 5/8" TYPE X GYPSUM BOARD 09 21 16 - METAL FRAMING, SIZE PER PLANS 8" MIN SEE ASSEMBLIES 07 52 00 - SBS MEMBRANE ROOFING 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM
