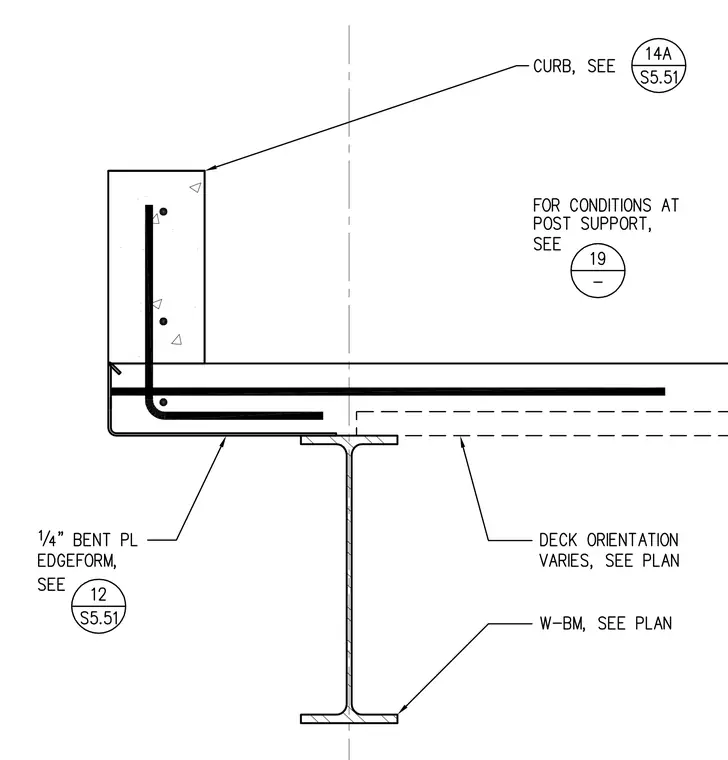

A concrete curb bears upon a wide-flange steel beam equipped with a quarter-inch bent plate edgeform. The curb features reinforcing bars anchored within the concrete section and references a secondary detail for post support conditions. The metal deck orientation varies per plan beneath the concrete slab bearing on the structural steel framing.
