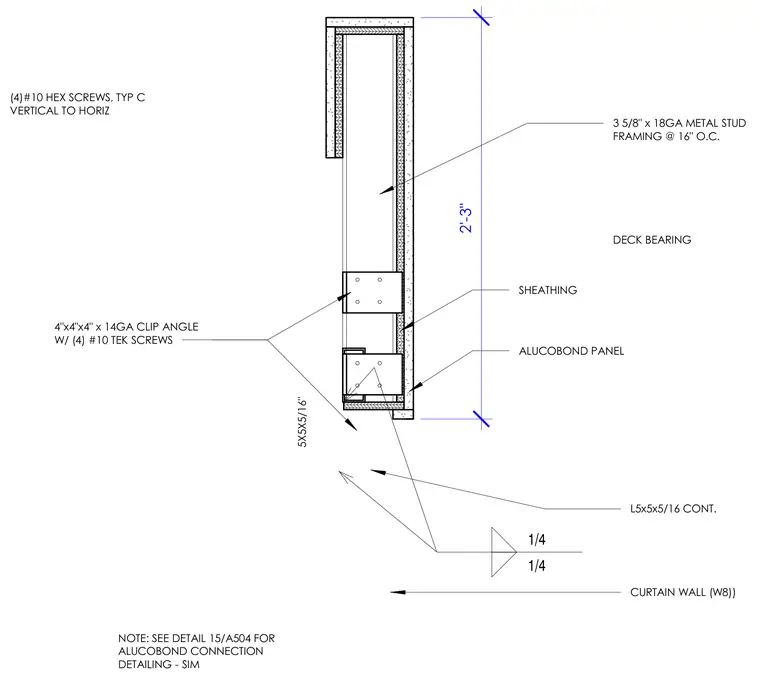

A cornice assembly at a curtain wall intersects with a deck bearing condition. The wall framing consists of 3 5/8-inch by 18-gauge metal studs spaced at 16 inches on center with exterior sheathing. An Alucobond panel is attached using a continuous 5x5x5/16-inch angle and 4x4x4-inch by 14-gauge clip angles secured with number 10 Tek screws. The steel framing incorporates a W8 section for the curtain wall support. Four number 10 hex screws provide vertical to horizontal attachment.
DECK BEARING CURTAIN WALL (W8)) 3 5/8" x 18GA METAL STUD FRAMING @ 16" O.C. 2'-3" ALUCOBOND PANEL 5X5X5/16" L5x5x5/16 CONT. SHEATHING (4)#10 HEX SCREWS, TYP C VERTICAL TO HORIZ 4"x4"x4" x 14GA CLIP ANGLE W/ (4) #10 TEK SCREWS 1/4 1/4 NOTE: SEE DETAIL 15/A504 FOR ALUCOBOND CONNECTION DETAILING - SIM
