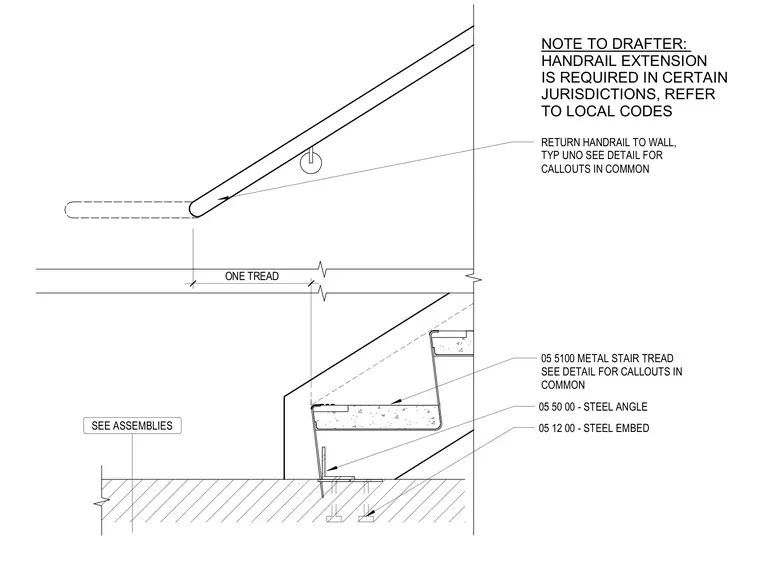

A metal stair assembly bottom termination intersects a wall and floor slab. A metal stair tread is supported by a steel angle secured to a structural steel embed plate anchored into the concrete substrate. A wall-mounted handrail returns to the adjacent wall with a bracket. Handrail extensions are required in certain jurisdictions and must comply with local building codes. Specification references coordinate metal stairs, structural steel, and steel embeds.
ONE TREAD RETURN HANDRAIL TO WALL, TYP UNO SEE DETAIL FOR CALLOUTS IN COMMON 05 5100 METAL STAIR TREAD SEE DETAIL FOR CALLOUTS IN COMMON SEE ASSEMBLIES NOTE TO DRAFTER: HANDRAIL EXTENSION IS REQUIRED IN CERTAIN JURISDICTIONS, REFER TO LOCAL CODES 05 12 00 - STEEL EMBED 05 50 00 - STEEL ANGLE
