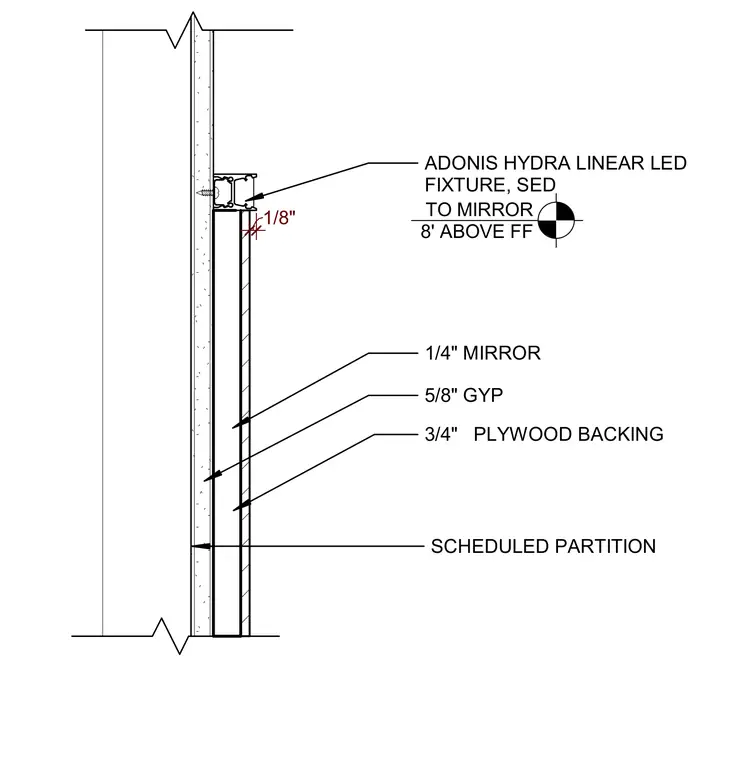

A scheduled partition provides structural backing consisting of five-eighths inch gypsum board and three-quarter inch plywood backing. A quarter-inch mirror is surface-mounted to the wall assembly. An Adonis Hydra linear LED fixture is positioned adjacent to the mirror, set eight feet above finished floor.
SCHEDULED PARTITION 3/4" PLYWOOD BACKING 1/4" MIRROR 5/8" GYP 1/8" ADONIS HYDRA LINEAR LED FIXTURE, SED TO MIRROR 8' ABOVE FF
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
