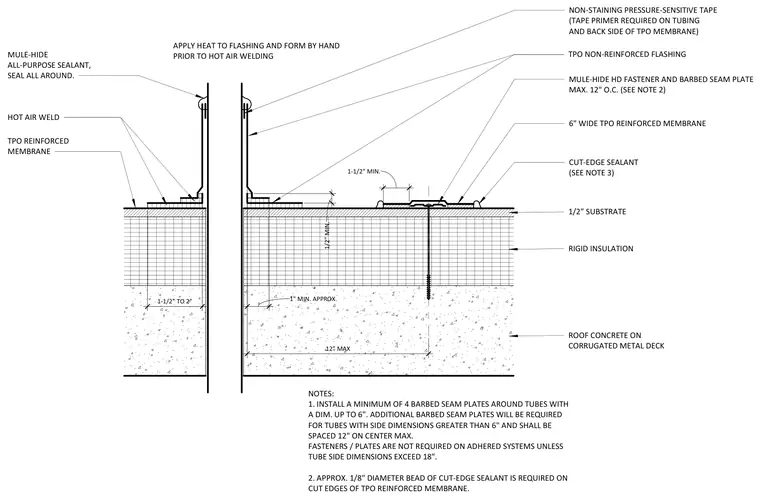

A field-fabricated TPO pipe flashing assembly is installed over a roof structure consisting of one and one-half inches of concrete on a corrugated metal deck, rigid insulation, and a one-half inch substrate. A non-reinforced TPO flashing is secured around the penetration using Mule-Hide heavy-duty fasteners and barbed seam plates spaced a maximum of twelve inches on center, supplemented by non-staining pressure-sensitive tape requiring tape primer on the tubing and back side of the membrane. The flashing is heat-formed by hand prior to hot air welding to a six-inch wide TPO reinforced membrane set on the roof deck. A bead of cut-edge sealant approximately one-eighth inch in diameter is applied to the cut edges of the TPO reinforced membrane. The top of the flashing is sealed all around with Mule-Hide all-purpose sealant.
1-1/2" MIN. ROOF CONCRETE ON CORRUGATED METAL DECK RIGID INSULATION 1/2” SUBSTRATE NOTES: 1. INSTALL A MINIMUM OF 4 BARBED SEAM PLATES AROUND TUBES WITH A DIM. UP TO 6". ADDITIONAL BARBED SEAM PLATES WILL BE REQUIRED FOR TUBES WITH SIDE DIMENSIONS GREATER THAN 6" AND SHALL BE SPACED 12" ON CENTER MAX. FASTENERS / PLATES ARE NOT REQUIRED ON ADHERED SYSTEMS UNLESS TUBE SIDE DIMENSIONS EXCEED 18". 2. APPROX. 1/8" DIAMETER BEAD OF CUT-EDGE SEALANT IS REQUIRED ON CUT EDGES OF TPO REINFORCED MEMBRANE. NON-STAINING PRESSURE-SENSITIVE TAPE (TAPE PRIMER REQUIRED ON TUBING AND BACK SIDE OF TPO MEMBRANE) TPO NON-REINFORCED FLASHING MULE-HIDE HD FASTENER AND BARBED SEAM PLATE MAX. 12" O.C. (SEE NOTE 2) 12" MAX 1" MIN. APPROX. TPO REINFORCED MEMBRANE HOT AIR WELD MULE-HIDE ALL-PURPOSE SEALANT, SEAL ALL AROUND. 1-1/2" TO 2" 1/2" MIN. 6" WIDE TPO REINFORCED MEMBRANE CUT-EDGE SEALANT (SEE NOTE 3) APPLY HEAT TO FLASHING AND FORM BY HAND PRIOR TO HOT AIR WELDING
