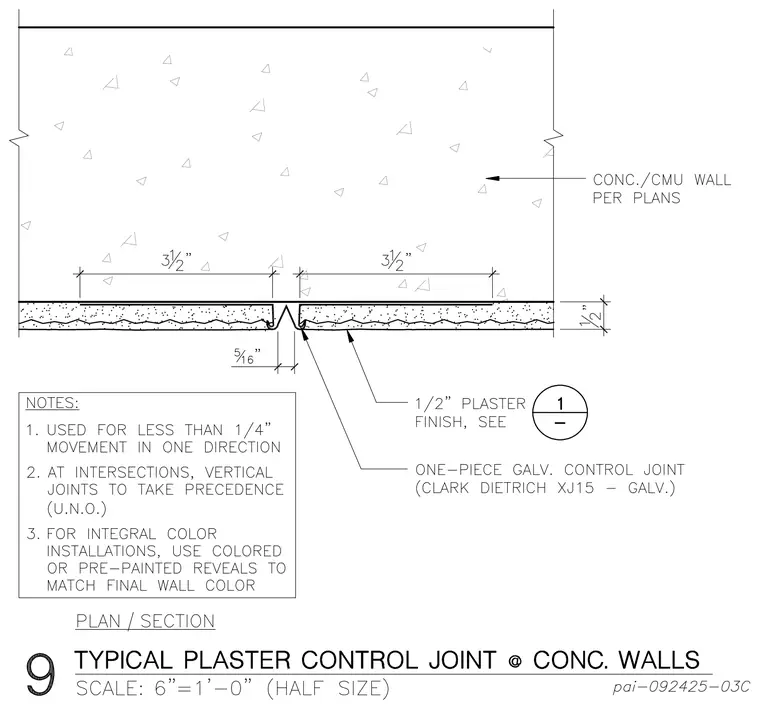

A one-piece galvanized metal control joint is integrated into a half-inch thick plaster finish applied over a concrete or concrete masonry unit wall per plans. The control joint assembly is centered with three-and-a-half-inch spacing to accommodate less than a quarter-inch of movement in one direction. Vertical joints take precedence at intersections unless noted otherwise. Colored or pre-painted reveals match the final wall color for integral color installations.
