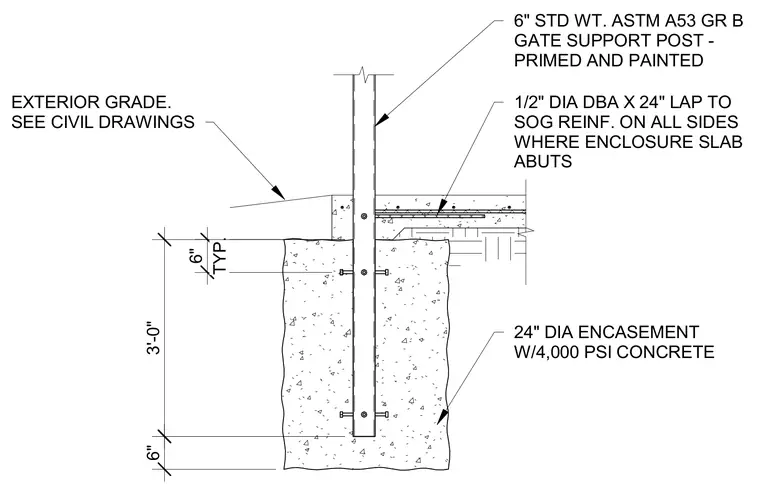

A six-inch standard weight ASTM A53 Grade B primed and painted gate support post is set into a twenty-four-inch diameter concrete encasement filled with four thousand PSI concrete. One-half-inch diameter deformed bar anchors provide a twenty-four-inch lap to the slab on grade reinforcement on all sides where the enclosure slab abuts. Exterior grade slopes away from the post per civil drawings.
6" STD WT. ASTM A53 GR B GATE SUPPORT POST - PRIMED AND PAINTED 24" DIA ENCASEMENT W/4,000 PSI CONCRETE EXTERIOR GRADE. SEE CIVIL DRAWINGS TYP. 6" 3'-0" 6" 1/2" DIA DBA X 24" LAP TO SOG REINF. ON ALL SIDES WHERE ENCLOSURE SLAB ABUTS
