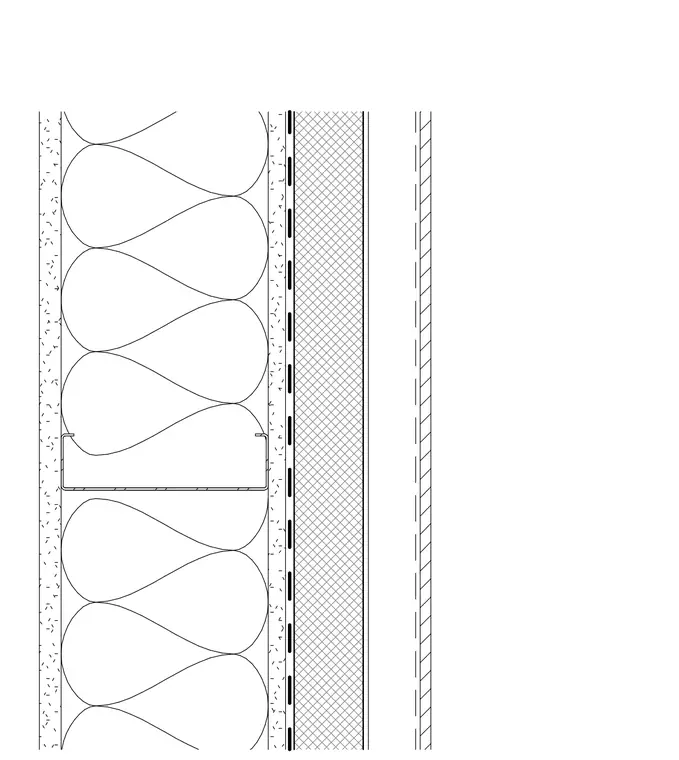

The drawing shows a cross-section of a framed exterior wall system. It includes internal gypsum board, a cold-formed steel stud with batt insulation filling the framing cavity, exterior sheathing, a layer of rigid insulation, a weather-resistive barrier, and an exterior cladding component. The assembly is designed to provide thermal insulation and moisture protection for the building envelope.
