An interior storefront door jamb assembly integrates the Arcadia A450 door frame profile. A door stop is provided per the interior storefront manufacturer specification. The door connects to the hinge side frame assembly and references the door schedule. Additional window schedule references are detailed along the jamb profile.

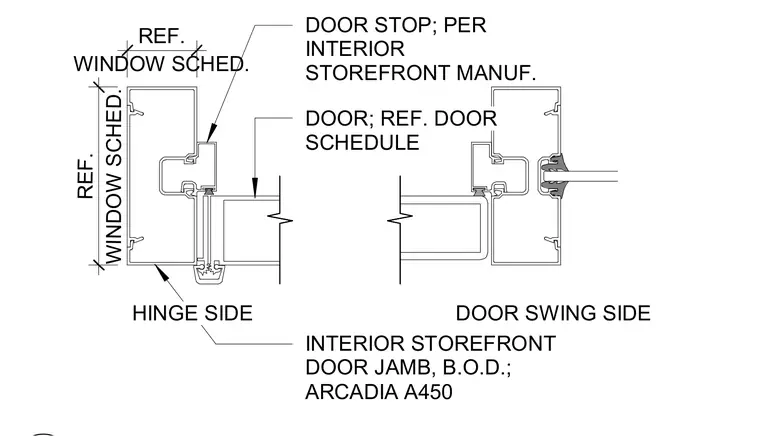

INTERIOR STOREFRONT DOOR JAMB, B.O.D.; ARCADIA A450 DOOR; REF. DOOR SCHEDULE WINDOW SCHED. REF. WINDOW SCHED. REF. DOOR STOP; PER INTERIOR STOREFRONT MANUF. HINGE SIDE DOOR SWING SIDE
