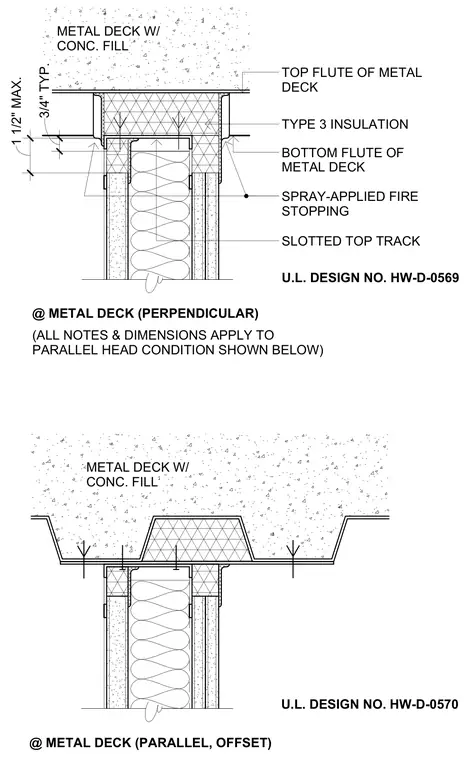

Partition wall head conditions meet a concrete-filled metal deck in both parallel offset and perpendicular orientations. The assembly consists of a slotted top track supporting a light-gauge steel stud wall with type 3 insulation in the stud cavity. Spray-applied fire stopping is applied at the deck flutes, referencing Underwriters Laboratories design numbers HW-D-0569 and HW-D-0570. Dimensions indicate a typical three-quarter-inch clearance and a one-and-a-half-inch maximum deflection gap between the track and the underside of the deck.
@ METAL DECK (PARALLEL, OFFSET) @ METAL DECK (PERPENDICULAR) (ALL NOTES & DIMENSIONS APPLY TO PARALLEL HEAD CONDITION SHOWN BELOW) U.L. DESIGN NO. HW-D-0570 U.L. DESIGN NO. HW-D-0569 SPRAY-APPLIED FIRE STOPPING BOTTOM FLUTE OF METAL DECK SLOTTED TOP TRACK TOP FLUTE OF METAL DECK TYPE 3 INSULATION METAL DECK W/ CONC. FILL METAL DECK W/ CONC. FILL 3/4" TYP. 1 1/2" MAX.
