A-JVFMS — Stainless Steel Handrail Post and Top Rail Connection

Architectural · A-JVFMS

Stainless Steel Handrail Post and Top Rail Connection

Materials

Steel Stainless Steel

Elements

Columns Connections / Plates

Connections

Welded Connection

About this detail

A 3/8-inch wide stainless steel top rail extends beyond and welds to the supporting post. A 1 1/2-inch wide stainless steel post connects down to a steel plate via a welded joint.

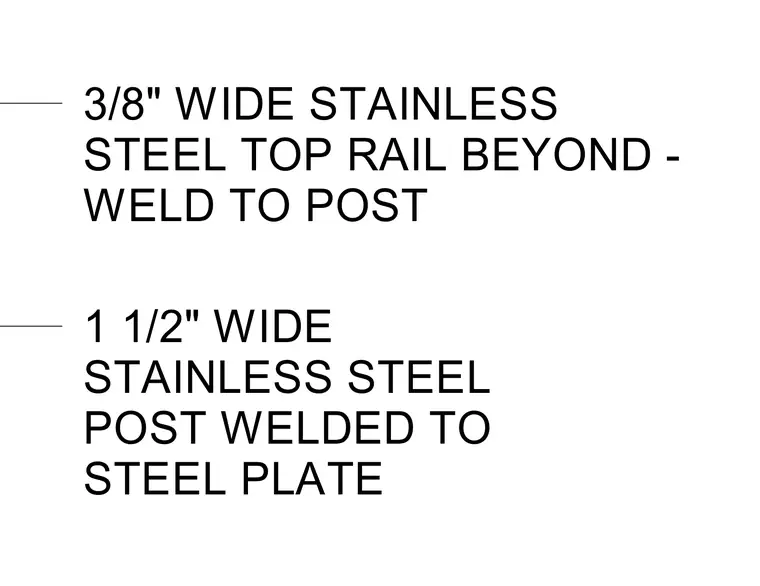

3/8" WIDE STAINLESS STEEL TOP RAIL BEYOND - WELD TO POST 1 1/2" WIDE STAINLESS STEEL POST WELDED TO STEEL PLATE
