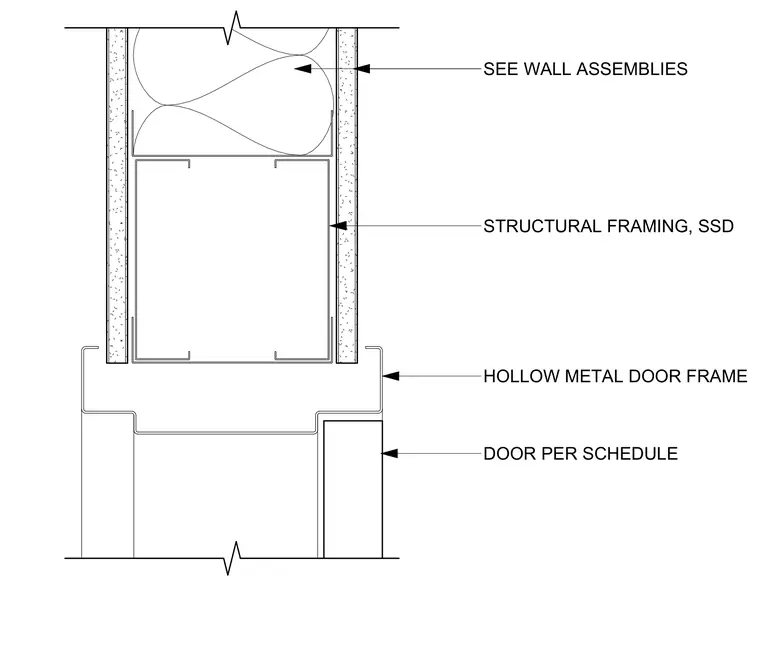

A hollow metal door frame is anchored to structural metal stud framing with gypsum board wall assemblies on both sides. The door leaf is installed per schedule within the hollow metal frame. Wall assemblies and structural stud framing are detailed per architectural specifications.
HOLLOW METAL DOOR FRAME DOOR PER SCHEDULE SEE WALL ASSEMBLIES STRUCTURAL FRAMING, SSD
