Wall protection assemblies utilize one-half-inch solid surfacing panels adhered over a scheduled gypsum board partition. At designated WP-1 locations, an additional layer of one-half-inch gypsum board is applied toちは the ceiling level to flush out with the protective panel below. External corners feature joints that are welded and ground smooth with a one-eighth-inch eased edge. Inside corners and vertical joints incorporate one-sixteenth-inch spaces sealed with color-matched caulk and eased edges. Transitions at door frames use a one-eighth-inch joint filled with color-matched caulk against the metal frame.

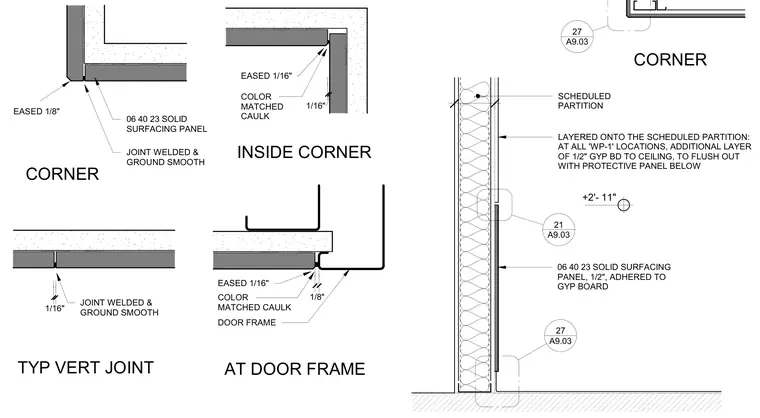

CORNER TYP VERT JOINT 1/16" 06 40 23 SOLID SURFACING PANEL EASED 1/8" JOINT WELDED & GROUND SMOOTH INSIDE CORNER 1/16" EASED 1/16" COLOR MATCHED CAULK EASED 1/16" COLOR MATCHED CAULK AT DOOR FRAME 1/8" DOOR FRAME JOINT WELDED & GROUND SMOOTH +2'- 11" SCHEDULED PARTITION LAYERED ONTO THE SCHEDULED PARTITION: AT ALL 'WP-1' LOCATIONS, ADDITIONAL LAYER OF 1/2" GYP BD TO CEILING, TO FLUSH OUT WITH PROTECTIVE PANEL BELOW . 06 40 23 SOLID SURFACING PANEL, 1/2", ADHERED TO GYP BOARD A9.03 21 A9.03 27 A9.03 27 CORNER
