Architectural · A-JVANZ

Bay Window and Metal Insulated Panel Wall Junction

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Windows Floors / Slabs Insulation

Connections

HSS Connection

About this detail

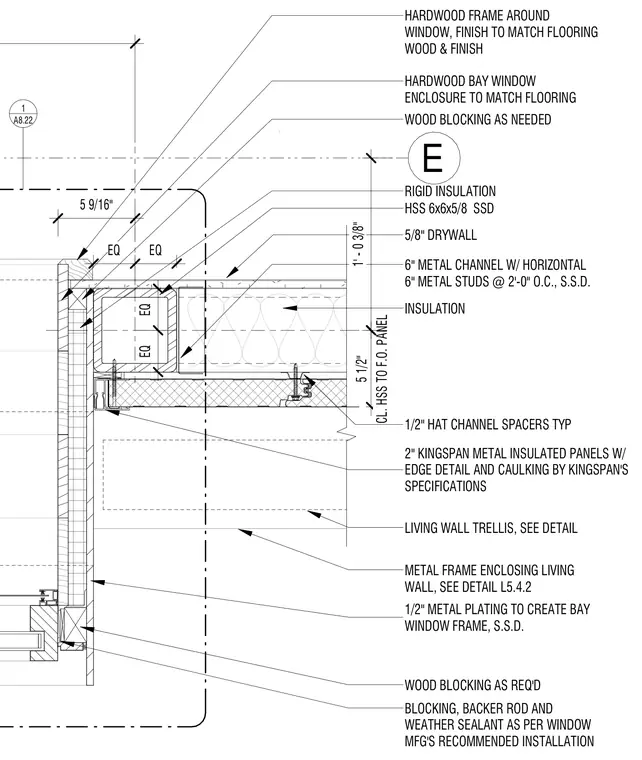

A wall intersection features a 6-inch by 6-inch by 5/8-inch hollow structural section steel column backed by 5/8-inch drywall and 6-inch metal studs at 2 feet on center with cavity insulation. The exterior facade consists of 2-inch Kingspan metal insulated panels installed with manufacturer-specified edge details and caulking over one-half-inch hat channel spacers. A bay window enclosure is framed using 1/2-inch metal plating, wood blocking, and a hardwood interior frame designed to match the flooring finish. Additional elements include a metal-framed living wall trellis referenced to detail L5.4.2 and window installation per manufacturer recommendations utilizing backer rod and weather sealant.
