Architectural · A-JV939

Side Panels - 3/4" Mdf With Plastic

Materials

Elements

Doors Floors / Slabs Millwork / Casework

About this detail

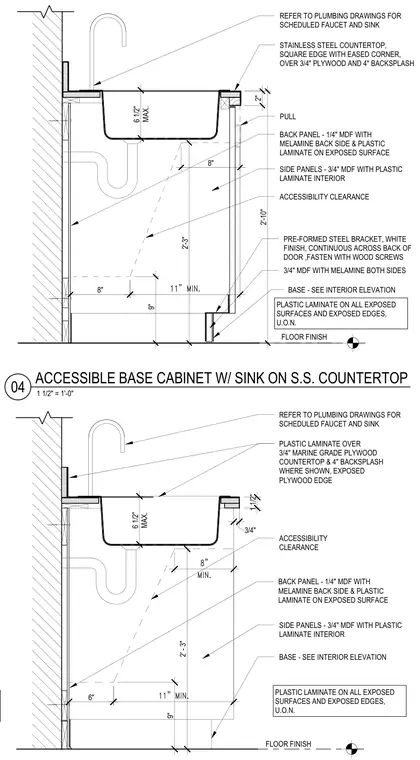

An accessible base cabinet assembly features a stainless steel countertop with a square edge and eased corner over 3/4" plywood, complete with a 4" backsplash. Side and back panels consist of 3/4" and 1/4" medium-density fiberboard respectively, finished with plastic laminate on exposed surfaces and melamine on unexposed sides. A pre-formed white finish steel bracket runs continuously across the back of the door and fastens with wood screws. Explicit knee and toe clearance dimensions are provided to meet accessibility standards, referencing plumbing drawings for the scheduled faucet and sink fixtures.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
