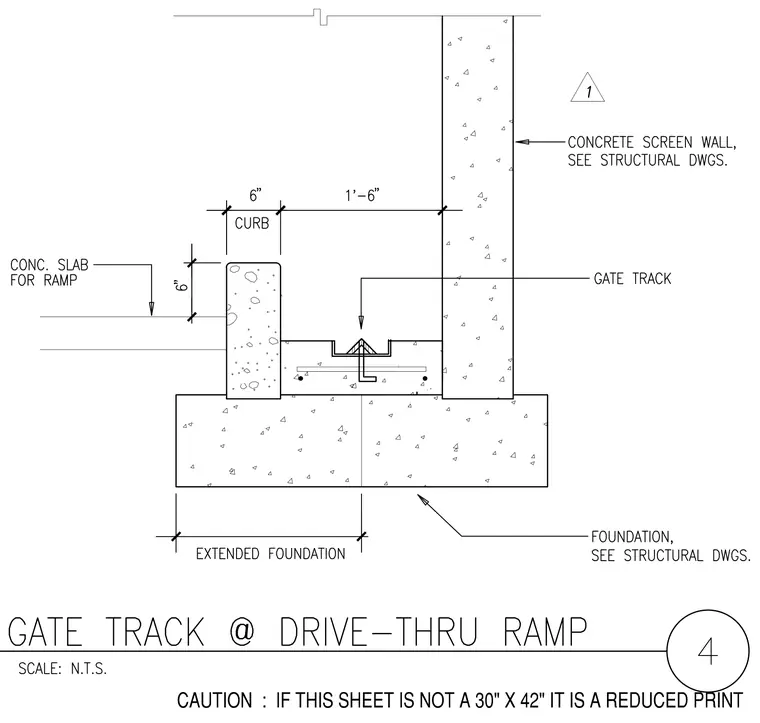

A recessed gate track is embedded within a concrete foundation and curb assembly adjacent to a concrete screen wall and a concrete slab for a ramp. The extended foundation supports a six-inch high by six-inch wide concrete curb spaced one foot six inches from a vertical concrete screen wall. A steel gate track sits centrally in a recessed channel within the foundation slab between the curb and the screen wall.
