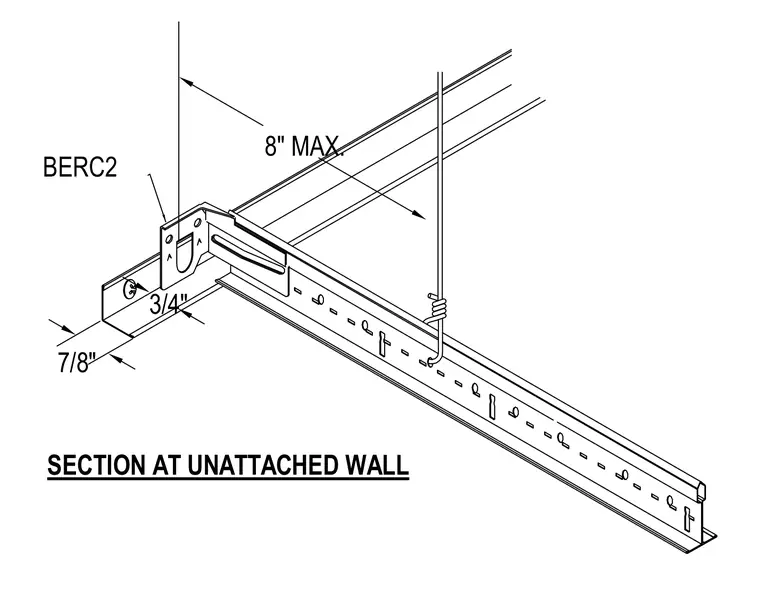

Termination of a suspended ceiling grid at an unattached wall condition. A BERC2 wall clip secures the main runner to the wall angle, maintaining a seven-eighths inch flange and a three-quarter inch dimension. A hanger wire supports the main runner at a maximum distance of eight inches from the wall. The wall angle provides a perimeter support ledge for the ceiling grid without rigidly fixing it to the partition.
7/8" 8" MAX. 3/4" BERC2 SECTION AT UNATTACHED WALL
