Architectural · A-JTH2R

Typical Stair at Landing

Scale: SCALE: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Concrete Steel

Elements

Floors / Slabs Stairs

Text on the drawing

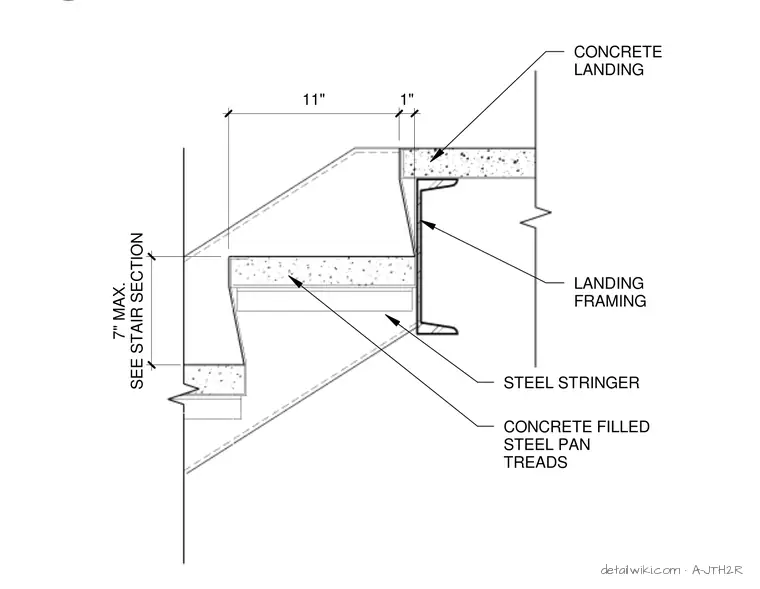

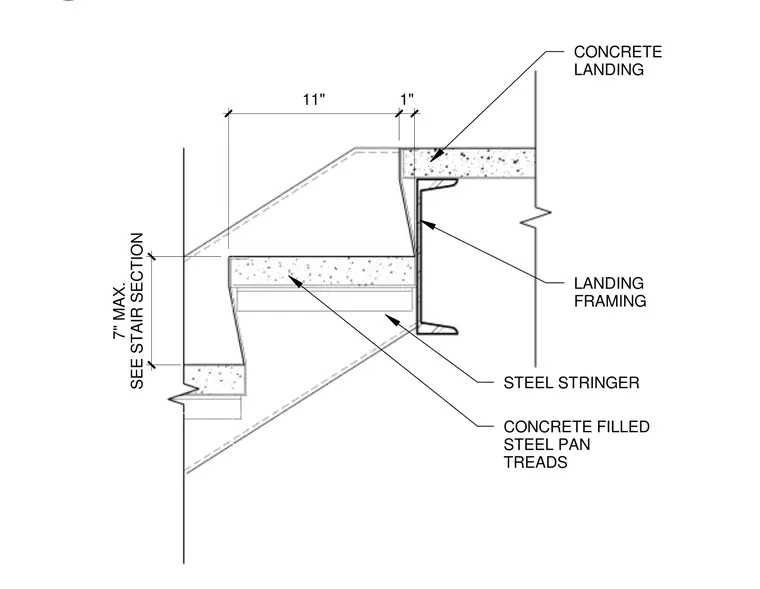

11" 1" 7" MAX. SEE STAIR SECTION CONCRETE FILLED STEEL PAN TREADS STEEL STRINGER CONCRETE LANDING LANDING FRAMING
