Architectural · A-JT9F7

Roof Edge Gutter and Parapet Flashing Detail

Materials

Elements

Walls Facades / Cladding Roofs Decks Waterproofing / Flashing Insulation Drainage Connections / Plates

About this detail

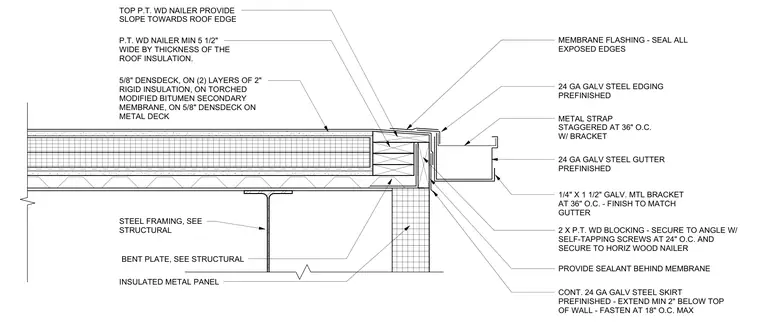

This roof edge assembly consists of a metal deck supporting a layer of five-eighths-inch densdeck, two layers of two-inch rigid insulation, a torched modified bitumen secondary membrane, and a top layer of five-eighths-inch densdeck. The roof perimeter incorporates a top pressure-treated wood nailer sloped toward the edge, paired with pressure-treated wood blocking secured with self-tapping screws at twenty-four inches on center. A continuous twenty-four gauge galvanized steel skirt extends a minimum of two inches below the top of the wall and is fastened at a maximum of eighteen inches on center over an insulated metal panel and bent plate structure. A prefinished twenty-four gauge galvanized steel gutter is supported by one-quarter-inch by one-and-a-half-inch galvanized metal brackets and metal straps staggered at thirty-six inches on center, matching the gutter finish. Membrane flashing seals all exposed edges, with sealant provided behind the membrane.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership
