Electrical · A-JT5AF

Typical Conduit Rack Detail

Materials

Elements

About this detail

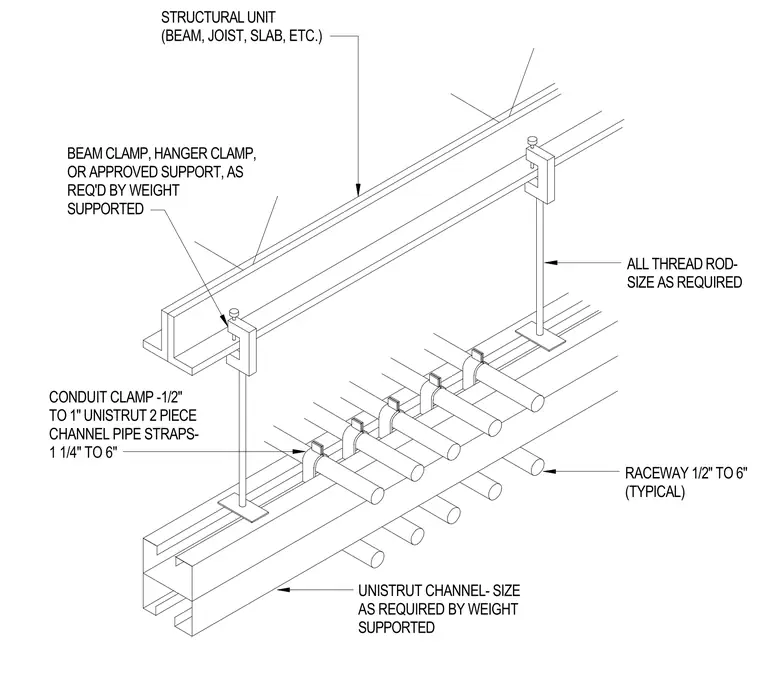

An overhead conduit rack is suspended from an overhead structural unit such as a beam, joist, or slab. Beam clamps, hanger clamps, or other approved supports sized for the supported weight attach directly to the structural element. All-thread rods of a size determined by the load extend downward to support Unistrut channels. Raceways ranging from one-half inch to six inches in diameter are secured to the Unistrut channel using one-half inch to one-inch conduit clamps or one-and-one-quarter-inch to six-inch two-piece channel pipe straps.
